Basic Specs
- Feed Type: Friction
- Fold Adjustment: Manual
- Max Paper Size: 14 x 21.25″
- Max Paper Weight: Up to 290 gsm
- Speed: Up to 22,000 sheets/hr
- Fold Types: Letter (1), Half (2), Z-Fold (3), Double Parallel (4), Gate (5), Engineer (6)

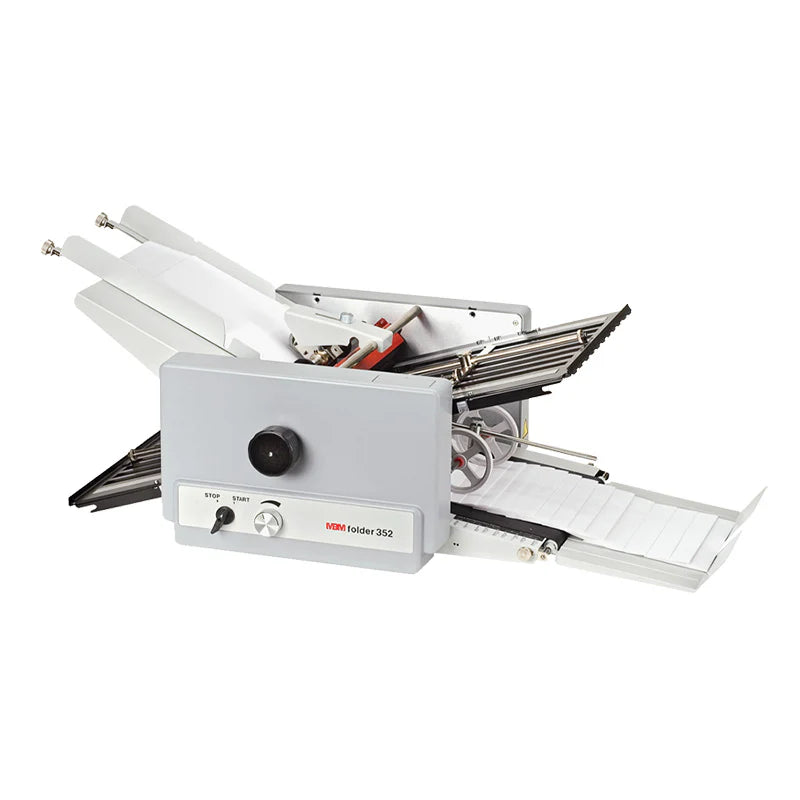

Description of the MBM 352F Friction Feed Manual Paper Folder
- Dual roller friction feed system folds a wide variety of stocks, including carbonless sheets
- Adjusts in seconds for standard and custom folds
- Variable speed control
- Powered exit conveyor
- Sheet separation from top of fanned stack
- Polyurethane foam rollers eliminate the need for fold roller pressure settings
- Heavy-duty, non-flexing side frames
- Needle bearings for high speed production
- Optional extended delivery system, cross fold for right-angle folding, and slitting, scoring, and perforating attachments
- UL and C UL approved
| User Manual | Spec Sheet | Paper Weight Conversion Chart | Paper Fold Types Guide |
Video of the MBM 352F Friction Feed Manual Paper Folder
Full Specs of the MBM 352F Friction Feed Manual Paper Folder
| Manufacturer Name | MBM |
| SKU | MBM352-0624 |
| Feed Type | Friction |
| Fold Adjustment | Manual |
| Feed Tray Capacity | Up to 300 sheets |
| Min Paper Size | 2″ x 2.75″ |
| Max Paper Size | 14 x 21.25″ |
| Paper Weights | Up to 290 gsm |
| Speed | 22,000 sheets/hr |
| Fold Types | Letter, Half, Z-Fold, Double Parallel, Gate, Engineer |
| Voltage | 150 V / 60 Hz |
| Weight | 105 lbs |
| Dimensions (H" x W" x D") | 14.5" x 41.75" x 22.25" |
