Basic Specs
- Feed Type: Air
- Fold Adjustment: Automatic
- Max Paper Size: 13″ x 19″
- Max Paper Weight: Up to 217 g/m² / 58# Bond / 120# Index
- Speed: Up to 18,000 sheets/hour
- Fold Types: Letter (1), Half (2), Z-Fold (3), Double Parallel (4), Gate (5), Engineer (6)

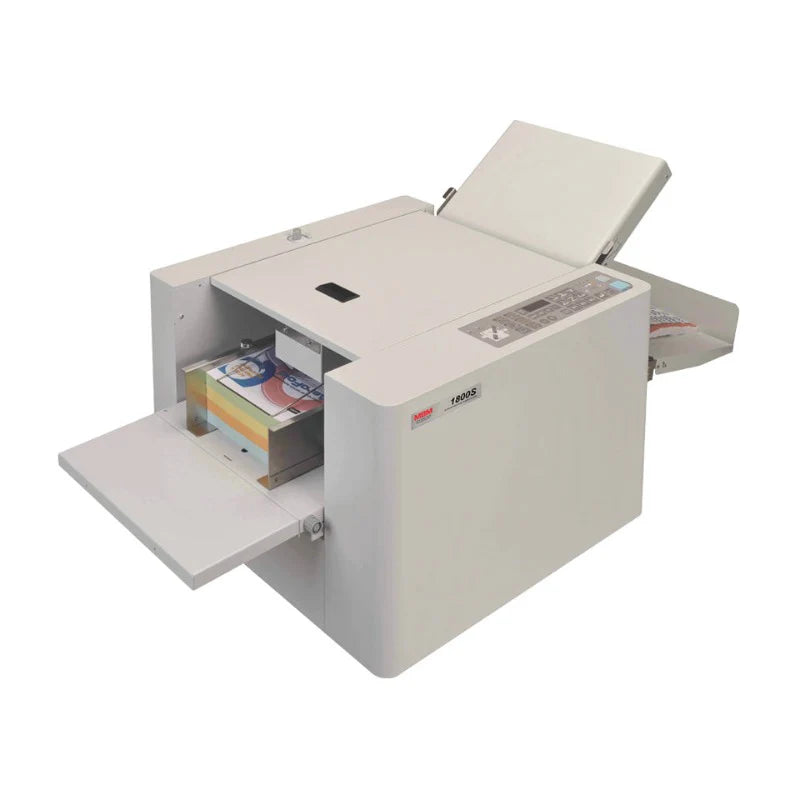

Description of the MBM 1800S Automatic Air-Feed Paper Folder
- 36 pre-programmed standard folds & Stores 30 custom folds in memory
- Ultrasonic double feed sensor
- Removable folding roller
- Adjustable folding roller pressure
- Spring loaded feed angle adjustment dial
- Easy open/close top cover opens to reach the air adjustment knob without disruption
- New “silver top†metal sheet for smoother paper run and better electric conductivity
- Top feed, adjustable air suction feed system, suitable for digitally printed and coated stocks
- One-touch memory keys for custom folds
- Non-standard paper sizes can be stored in memory
- Control panel includes LED 4 digit counter with batch and total functions
- Test button folds 2 sheets for inspection
- Extended exit tray for neat stacking of folded sheet
- Automatic feed table ensures optimum feed pressure
- Automatic conveyor belt and self-setting exit rollers ensure smooth ejection of folded paper
- Single sheet feeding automatically maintained for different weights of paper
- Display alert and audible signal in case of incorrect operation
- Skew and micro-adjustment dials
- All-metal construction
- Optional micro-perforator, and scorer.
| User Manual | Spec Sheet | Paper Weight Conversion Chart | Paper Fold Types Guide |
Video of the MBM 1800S Automatic Air-Feed Paper Folder
Full Specs of the MBM 1800S Automatic Air-Feed Paper Folder
| Manufacturer Name | MBM |
| SKU | MBM1800S-0623 |
| Feed Type | Air |
| Fold Adjustment | Automatic |
| Feed Tray Capacity | Up to 800 sheets |
| Min Paper Size | 4.5″ x 8.25″ |
| Max Paper Size | 13″ x 19″ |
| Paper Weights | Up to 217 g/m² / 58# Bond / 120# Index |
| Speed | 18,000 sheets/hour |
| Fold Types | Letter, Half, Z-Fold, Double Parallel, Gate, Engineer |
| Voltage | 120 V / 60 Hz |
| Weight | 189 lbs |
| Dimensions (H" x W" x D") | 23" x 49" x 24" |
